Hopkins HUW150 Underwater Magnetic Drill

SKU: HUW150 Categories: , Tags: , ,

The Hopkins HUW150 underwater magnetic drill is a drilling/broaching machine with a mechanically operated magnetic base.

The HUW150 drill has been designed and developed to meet the demands of the offshore underwater industry. This unique machine uses hydraulic power and a mechanically operated base magnet which locks the machine down to the structure being drilled.

It is capable of drilling clean, accurate holes up to 76mm in diameter in metal up to 2″ thick, using well-proven broaching cutter technology to maximise potential drilling power and speed. The machine is designed for use with standard or tungsten carbide cutters.

We can offer upgraded units with the capability of drilling up to 100mm diameter holes. This hydraulically driven broaching drill is ideally suited to drilling larger diameter holes in tanks, steel structures and other applications. In addition to the drill we can also offer a range of cutter to suit.

Weight 21 kg
Brand

Power Type

Capacity

76mm Diameter
Fitting

19mm
Hydraulic Flow lpm

10-50
Pressure

160
Couplings

Yes

Features

  • Hydraulic motor for underwater applications
  • Stainless steel construction resists corrosion
  • Mechanically activated permanent magnetic base
  • Drill chuck attachment available
  • Powerful and secure magnetic hold

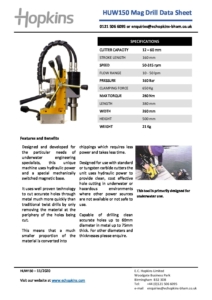

Data Sheet HUW150 04 2024 V5

Need to know more about our Hopkins HUW150 Underwater Magnetic Drill?

Give us a call on +44 121 506 6095 or drop us an email to enquiries@echopkins.com
Alternatively you can request a callback below, fill out the form and we'll be in touch as soon as possible.
