Earth Anchor Driving Package
Earth anchor driving package for inserting earth anchors (duckbill) in a range of ground types from clay or sandy soil to hard ground with aggegeate or stone.

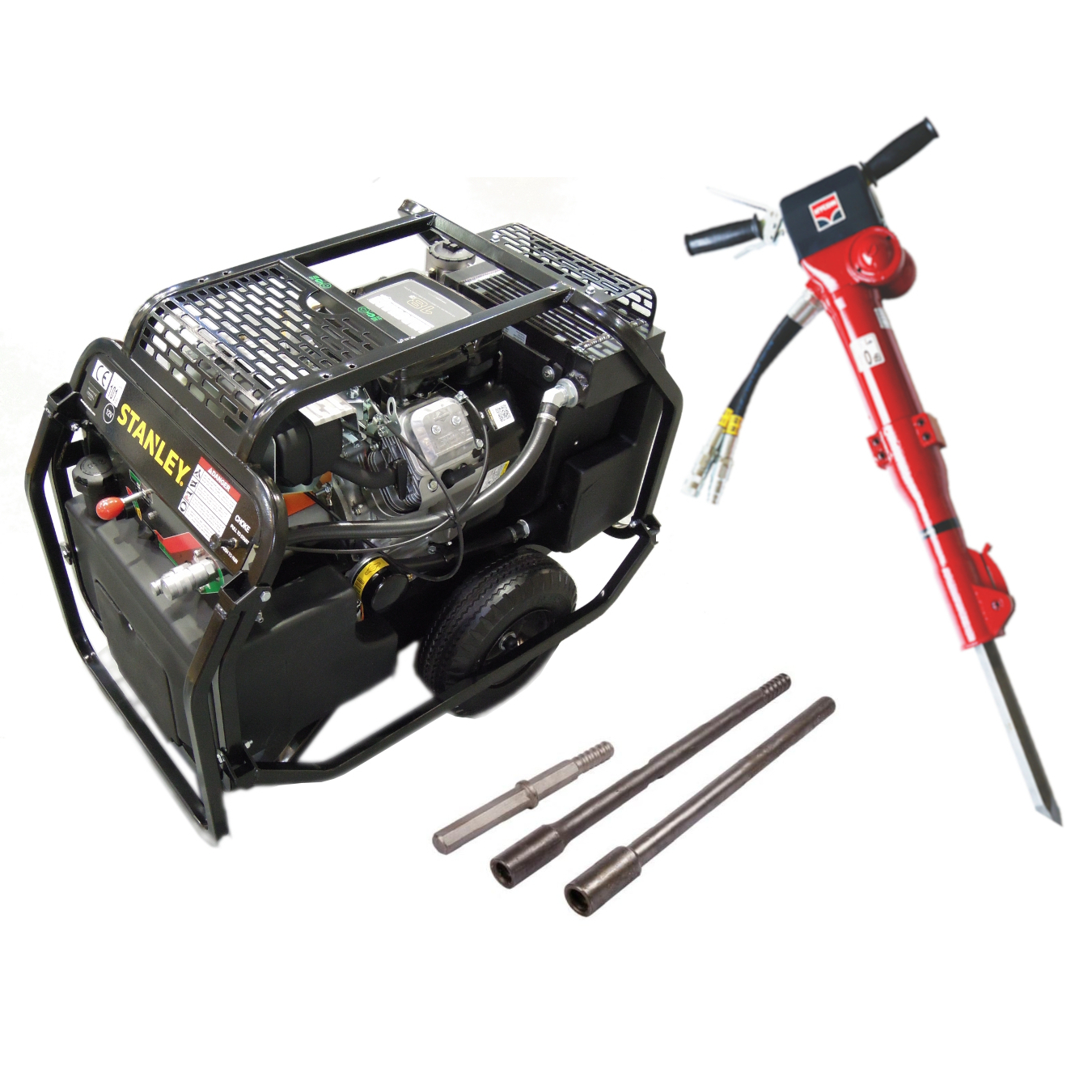

The package consists of a Stanley HP8 hydraulic power pack with a 7m hose set plus a Stanley BR67 hydraulic breaker plus a set of anchor drive rods which includes shank adpator, rod extensions to suit customers requirements and the drive probe itsself. Each package is tailor to each customers requirements and can be offered with chisels and moil points to fit the breaker.
The package is well suited to earth (duck bill) anchor driving due to the weight and blows per minute of the breaker with the flow and pressure of the power pack ensuring excellent performance from the tool.
Enquiry: Earth Anchor Driving Package
| Weight | 150 kg |
|---|---|
| Brand | |
| Power | Hydraulic |
| Hydraulic Flow lpm | 20-30 |
| Pressure | 150 |
| Hydraulic Tank Capacity | 11 |
| Fuel Tank Capacity | 20.8 |
| Dimensions (cm) | 89 x 55 x 74 |
Features
Electric Start with sealed non-spill battery
Type II or Type III hydraulic circuit with superior cooling.
Tool circuit lockout during start-up – safety feature.
Lift & Latch handle with fold-up side handles.
In tank hydraulic filter with dipstick and easy access filter replacement.
