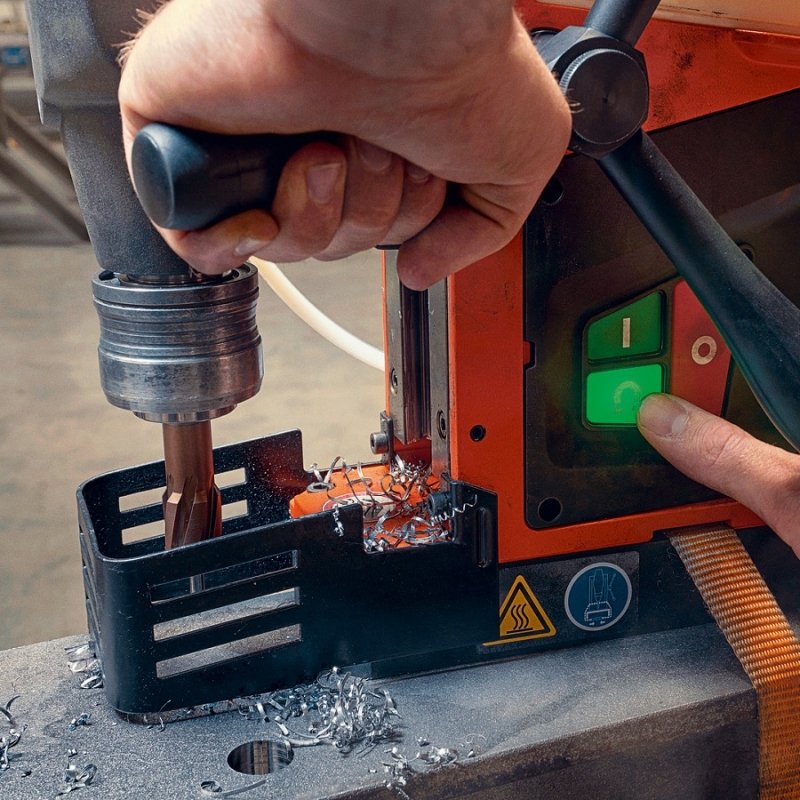

Fein KBE 36 Magspeed Endurance Magnetic Core Drill
The Fein KBE 36 Magspeed Endurance Magnetic Core Drill for holes up to 36mm with Carbide core drill bits.

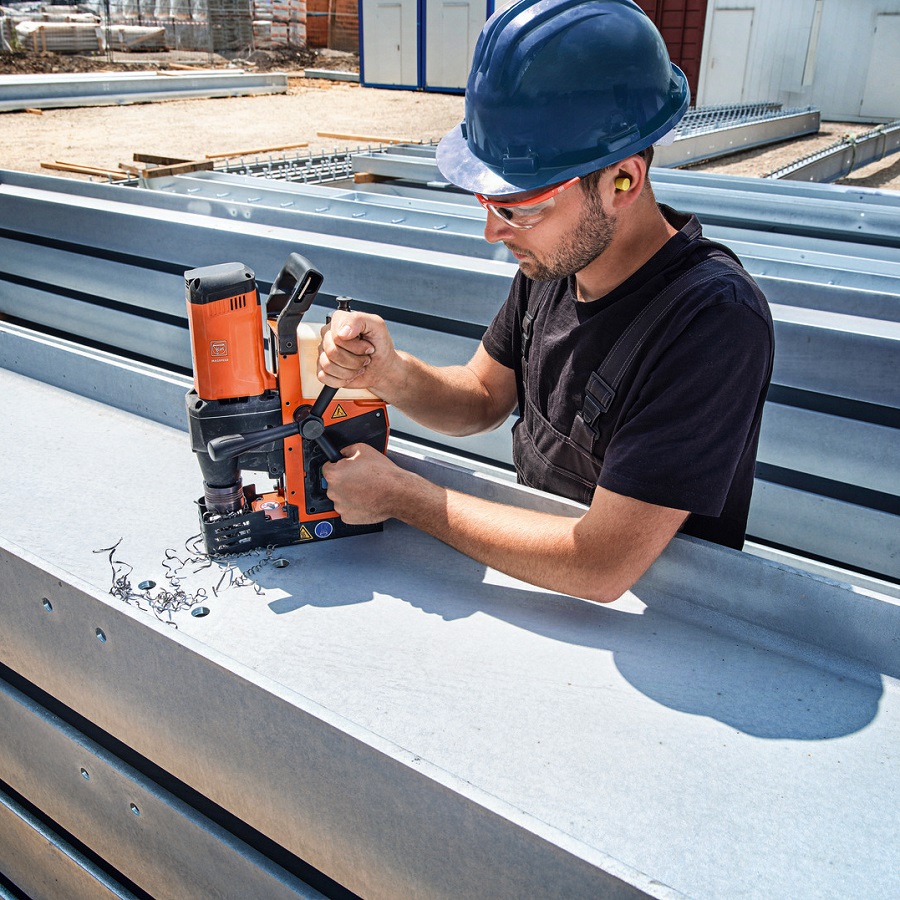

The NEW Fein KBE 36 Magspeed is a small and lightweight single-speed endurance magnetic core drill offering unique performance and service life even under the most challenging conditions in the workshop and on the construction site. With a brushless motor and cutting speeds of up to 70m/min you can drill up to twice as many holes in the same amount of time.
Best suited for use with Carbide Core Drill Bits
Capable of core drilling up to 36 mm using Carbide core bits and 20mm with HSS core bits.
Includes: Core Drill, Coolant Tank, Lashing Strap, 1 x Centring pin, Contact guard, Hex Keys & socket, Case.
Available in 110 & 240 v.
Machine supplied with 3 year warranty
Enquiry: Fein KBE 36 Magspeed Endurance Magnetic Core Drill
Voltage | 110v / 240v |
Motor Type | Brushless |
Motor Input | 1600 w |
Motor Output | 1200 w |
Speed, Full Load | 620 rpm |
Speed, No Load | 620 m/min |
Cutter Capacity HSS | 20 mm |
Cutter Capacity Carbide | 36 mm |
Core Drilling Max Depth | 50 mm |
Core Drill Holder | 3/4″ Weldon |
Stroke | 107 mm |
Magnetic Holding Power | 10,000 N |
Magnetic Foot Dimensions | 175 x 80 mm |
Cable | 3 M |
Weight according to EPTA | 11.00 Kg |
Features
- Twice the productivity combined with the perfect result: drilling times are halved, the work process is sped up. Thanks to rapid work progress, you can drill up to 60 holes rather than the 30 that used to be possible in the same time.
- Outstanding cutting performance that has never been seen before thanks to stable speed and torque curve with cutting speeds of up to 70 m/min – ideal for carbide core drill bits.
- Unique durability for up to 240 000 holes thanks to the extremely low-wear machine concept with brushless 1600 W high-power motor and internal drill motor cable routing!
- Intuitive operating concept translates into good accessibility in tight spots.
- Convenient magnetic holding force display.
- Tilt sensor stops the drill motor when the tool slips or tilts.
- Integrated coolant tank.
- Feed handwheel can be moved from one side to the other without any tools.
- Slot for 5 mm hexagon socket wrench on the tool itself.
- Personal safety switch.
