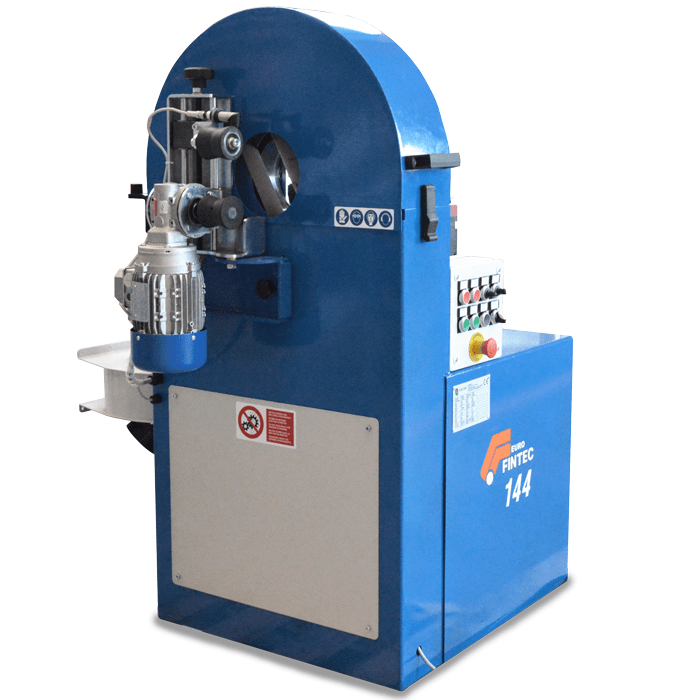

Gecam 144 Abrasive Planetary Bent Tube Polisher
Gecam 144 abrasive planetary machine for grinding and finishing of pipes and tubes from 15 to 150mm diameter.
The Gecam 144 Planetary abrasive bent pipe & tube grinder is a robust machine full of features that will make sateening and polishing of round and elliptical tubes a breeze.
The machine is easy to operate, set up and use.
There is an extraction point at rear of the machine to help with dust control.
Comes complete with variable speed belt control for optimal finishing of all metals.
Enquiry: Gecam 144 Abrasive Planetary Bent Tube Polisher
| Weight | 350 kg |
|---|---|
| Belt Size | 50x1100mm |
| Tube Size | 15 to 150mm Dia |
| Voltage | 415v |
| Power | 2.2kW |
| Speed | Variable up to 2800rpm |
| Dimensions mm - L x W x H | 1200 x 650 x 1250 |
Features
- Huge Tube & Pipe capacity of 15 – 150 mm diameter with an internal minimum radius of 150mm.
- Finishes Round, Oval, Elliptical and Irregular section pipes and tubes with ease.
- Optional Auto feed available for straight tubes
- Foot pedal supplied for belt opening
- Full guarding with electrical safety lock
- Adjustable tables in-feed and out-feed sides
