Eisenblatter TOPRAIL 1100 HT Pipe Belt Sander

SKU: Eisenblatter-Top-Rail-1100-HT Category: Tags: , , , ,

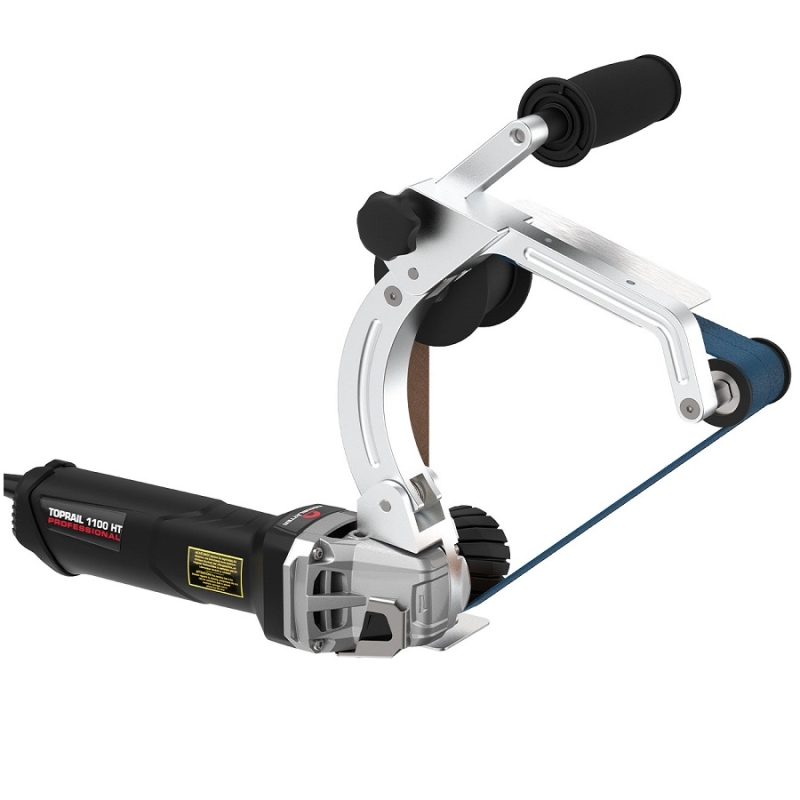

The Eisenblatter TOPRAIL 1100 HT pipe belt sander is an extremely compact and powerful pipe sander for easy and fatigue-free sanding, satin finishing or polishing of round pipes and tubes.

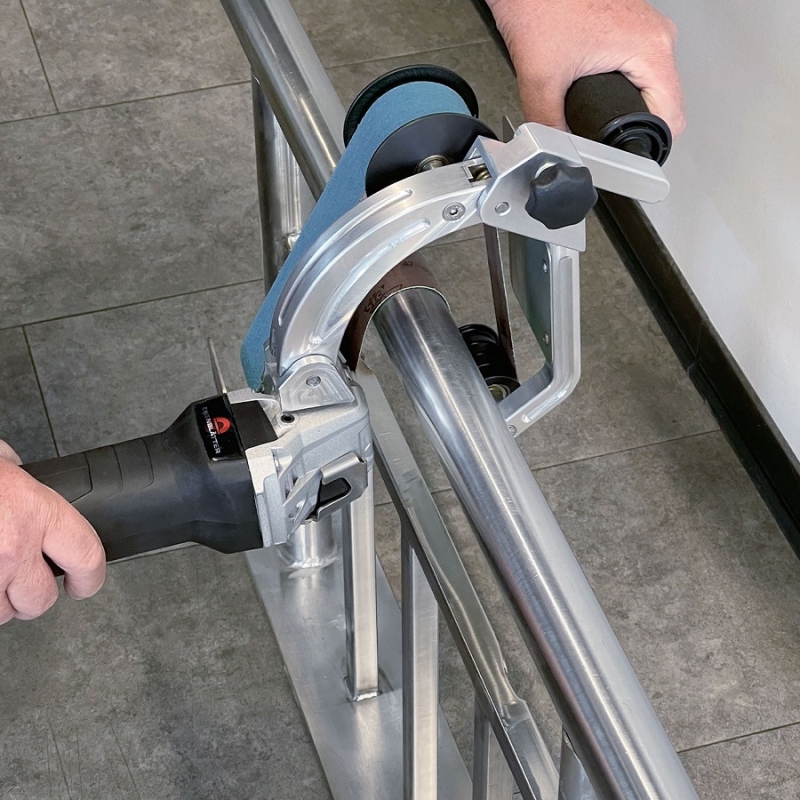

During use, the machine is resiliently placed on the round tube from above, which enables fatigue-free work for hours, as the weight of the machine rests on the work-piece. Thanks to the high-performance motor with planetary gear, a triple torque is generated compared to grinders of a similar design.

The Eisenblatter TOPRAIL 1100 HT pipe belt sander is therefore ideally suited for continuous use, and that with low weight and very compact dimensions. All functional parts are made of high-quality, milled aluminium, wear-resistant drive and deflection rollers (with lateral belt guide). As a result, high precision and a perfect end result.

Set Contents:
1 x TOPRAIL 1100 HT pipe belt sander
1 x Particulate matter protection cap
3 x Zircon belts 40 x 780 mm
1 x SC Fleece Belt

Options: Table ball joint mount allows stationary use at any angle or position, Finger protection cover.

Accessory set also available containing  33 items
1 x Mobile tool case, 8 x Zircon belts, 6 x SC fleece belts, 6 x TZ-Pyramid belts, 2 x BRIGHTEX® Berry belts, 2 x BRIGHTEX® Sun belts, 1 x BRIGHTEX® Softclean Powder, 1 x BRIGHTEX® Berry mini pre-polishing paste, 1 x BRIGHTEX® Sun mini post-polishing paste, 2 x BRIGHTEX® microfibre cloths, 1 x BRILLIANCE CLEAN 50 ml, 1 x POWER CLEANER 50 ml and 1 x INOX PROTECT 50 ml.

Delivery 3-5 days

: from: £1,338.05 inc VAT
from: £1,103.94 inc VAT

Technical Data
Voltage 110v or 240v
Power 1750 Watts
Covers Pipe sizes 20 – 80mm Ø
Belt Size 40 x 780 mm
Motor Speed 800 – 3000 rpm
Belt Speed 2.5 – 9.4 m/sec
Weight 3.8 Kg

Features

  • Particularly easy belt change in seconds.
  • Mudguards made of stainless steel.
  • Ideal for working on tight grinding areas – the handle can be adjusted accordingly.
  • Ideal for pipe diameters Ø 25 – 70 mm. Max. tube diameter Ø 130 mm.
  • Extremely compact, powerful and high-torque thanks to the exclusive planetary gear (high torque) with high torque – up to three times higher than comparable devices.
  • Fatigue-free, easily controllable tape guide.
  • “Marathon-Motor” offers 30% higher power reserves with up to 50% more torque compared to comparable devices.
  • Motor multiple dust protection for a long service life.
  • Electronic overload protection, soft start and restart protection.
  • Switch-off carbon brushes to protect the motor.
  • Maintenance-friendly device design – for carbon brush replacement in seconds.
  • The machine can be put down in the standing position without touching the table.
