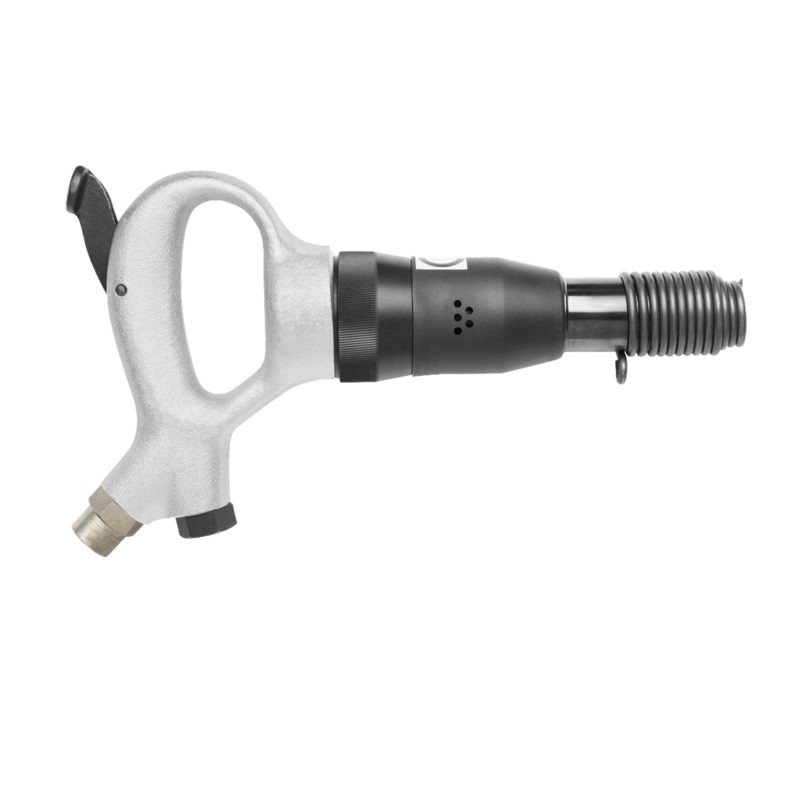

Spitznas Riveting and Chipping Hammers
Various types of the Spitznas riveting and chipping hammers are available for uncountable applications. Different chisels, pointed chisels, flat chisels, spade chisels and broad chisels, etc. can be used with the appropriate shank. The tools have different impact rates, piston diameters and piston strokes.
Below are the Riveting and Chipping Hammers models available.
7 1301 0010
7 3412 0010/20
7 3413 0010
7 3414 0010
7 3415 0010
7 3416 0010/20
7 5112 0010/20
7 5114 0010/20
7 5114 0010/20
7 5212 0010/20
7 5214 0010/20
7 5215 0010/20
7 5504 0010/20
7 5505 0010/20
7 5603 0010/20
7 5604 0010/20
7 5708 0010/20/30/50
7 5709 0010/30/50
7 5804 0010/20/30/50
7 5805 0010/30/50
7 6015 0010/20/30/50
7 6016 0010/30/50
7 6018 0010/20/30/50
7 6019 0010/30/50
7 6204 0010/20/30/50
Enquiry: Spitznas Riveting and Chipping Hammers
| Brand |
|---|
Riveting and Chipping Hammers Model No
| Model No. | Piston dia. | Piston stroke | Shank | Impacts | Weight |
| mm | mm | mm | rpm | kg | |
| 7 1301 0010 | 17 | 16 | S 9×29 | 4,800 | 1.3 |
| 7 3412 0010 | 34 | 112 | R 25×75 | 1,650 | 8 |
| 7 3412 0020 | 34 | 112 | S 22×82.5 | 1,650 | 8 |
| 7 3413 0010 | 34 | 112 | S 22×82.5 | 1,650 | 10.2 |
| 7 3414 0010 | 46 | 145 | S 22×82.5 | 1,380 | 20 |
| 7 3415 0010 | 24 | 58 | RS 17.5×59 | 2,990 | 4.8 |
| 7 3416 0010 | 36 | 188 | R 25×75 | 800 | 12.8 |
| 7 3416 0020 | 36 | 188 | S 22×82.5 | 800 | 12.8 |
| 7 5112 0010 | 16 | 30 | R 10.3×36 | 6,100 | 0.7 |
| 7 5112 0020 | 16 | 30 | S 12.5×36 | 6,100 | 0.7 |
| 7 5114 0010 | 16 | 30 | R 10.3×36 | 6,100 | 0.7 |
| 7 5114 0020 | 16 | 30 | S 12.5×36 | 6,100 | 0.7 |
| 7 5115 0010 | 16 | 30 | R 10.3×36 | 6,100 | 1 |
| 7 5115 0020 | 16 | 30 | S 12.5×36 | 6,100 | 1 |
| 7 5212 0010 | 16 | 45 | R 10.3×36 | 4,400 | 0.8 |
| 7 5212 0020 | 16 | 45 | S 12.5×36 | 4,400 | 0.8 |
| 7 5214 0010 | 16 | 45 | R 10.3×36 | 4,400 | 0.8 |
| 7 5214 0020 | 16 | 45 | S 12.5×36 | 4,400 | 0.8 |
| 7 5215 0010 | 16 | 45 | R 10.3×36 | 4,400 | 1.1 |
| 7 5215 0020 | 16 | 45 | S 12.5×36 | 4,400 | 1.1 |
| 7 5504 0010 | 20 | 60 | RS 14.3 | 3,200 | 1.8 |
| 7 5504 0020 | 20 | 60 | R 14.3×50 | 3,200 | 1.8 |
| 7 5505 0010 | 20 | 60 | RS 14.3 | 3,200 | 3.1 |
| 7 5505 0020 | 20 | 60 | R 14.3×50 | 3,200 | 3.1 |
| 7 5603 0010 | 20 | 90 | RS 14.3 | 2,200 | 2.1 |
| 7 5603 0020 | 20 | 90 | R 14.3×50 | 2,200 | 2.1 |
| 7 5604 0010 | 20 | 90 | RS 14.3 | 2,200 | 3.4 |
| 7 5604 0020 | 20 | 90 | R 14.3×50 | 2,200 | 3.4 |
| 7 5708 0010 | 23 | 54 | RS 17.5 | 2,800 | 3.7 |
| 7 5708 0020 | 23 | 54 | R 17.5×60 | 2,800 | 3.7 |
| 7 5708 0030 | 23 | 54 | RS 20 | 2,800 | 3.7 |
| 7 5708 0050 | 23 | 54 | R 20×60 | 2,800 | 3.7 |
| 7 5709 0010 | 23 | 54 | RS 17.5 | 2,800 | 4 |
| 7 5709 0030 | 23 | 54 | RS 20 | 2,800 | 4 |
| 7 5709 0050 | 23 | 54 | R 20×60 | 2,800 | 4 |
| 7 5804 0010 | 23 | 83 | RS 17.5 | 2,100 | 4.1 |
| 7 5804 0020 | 23 | 83 | R 17.5×60 | 2,100 | 4.1 |
| 7 5804 0030 | 23 | 83 | RS 20 | 2,100 | 4.1 |
| 7 5804 0050 | 23 | 83 | R 20×60 | 2,100 | 4.1 |
| 7 5805 0010 | 23 | 83 | RS 17.5 | 2,100 | 4.5 |
| 7 5805 0030 | 23 | 83 | RS 20 | 2,100 | 4.5 |
| 7 5805 0050 | 23 | 83 | R 20×60 | 2,100 | 4.5 |
| 7 6015 0010 | 30 | 72.5 | RS 17.5 | 3,200 | 6.3 |
| 7 6015 0020 | 30 | 72.5 | R 17.5×60 | 3,200 | 6.3 |
| 7 6015 0030 | 30 | 72.5 | RS 20 | 3,200 | 6.3 |
| 7 6015 0050 | 30 | 72.5 | R 20×60 | 3,200 | 6.3 |
| 7 6016 0010 | 30 | 71.5 | RS 17.5 | 3,200 | 6.3 |
| 7 6016 0030 | 30 | 71.5 | RS 20 | 3,200 | 6.3 |
| 7 6016 0050 | 30 | 71.5 | R 20×60 | 3.2 | 6.3 |
| 7 6108 0010 | 30 | 102.5 | RS 17.5 | 1,500 | 6.9 |
| 7 6108 0020 | 30 | 102.5 | R 17.5×60 | 1,500 | 6.9 |
| 7 6108 0030 | 30 | 102.5 | RS 20 | 1,500 | 6.9 |
| 7 6108 0050 | 30 | 102.5 | R 20×60 | 1,500 | 6.9 |
| 7 6109 0010 | 30 | 101.5 | RS 17.5 | 1,500 | 6.7 |
| 7 6109 0030 | 30 | 101.5 | RS 20 | 1,500 | 6.7 |
| 7 6109 0050 | 30 | 101.5 | R 20×60 | 1,500 | 6.7 |
| 7 6204 0010 | 30 | 137.5 | RS 17.5 | 1,200 | 7.9 |
| 7 6204 0020 | 30 | 137.5 | R 17.5×60 | 1,200 | 7.9 |
| 7 6204 0030 | 30 | 137.5 | RS 20 | 1,200 | 7.9 |
| 7 6204 0050 | 30 | 137.5 | R 20×60 | 1,200 | 7.9 |
