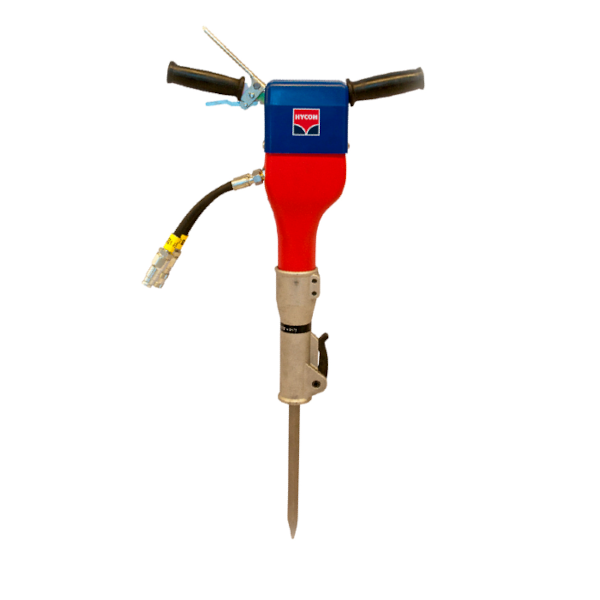

Hycon HH15 Hydraulic Breaker
The Hycon HH15 hydraulic breaker is the ideal choice for professionals working in the light construction industry.
Even only weighing 19.2 kilos, the performance of the Hycon HH15 hydraulic breaker is equal to a 25-30 kg electric breaker. It works inside or outside regardless of weather, dust.
The breaker comes with anti-vibration handles as standard and the tool size is Hex. 22×8 mm. Combine the HH15 with a HYCON power pack type HPP06, and you will have a great lightweight pack and breaker combination or run from any power pack with a 20 lpm hydraulic flow option.
We also can supply spares parts for the whole range of Hycon breaker as well as all the other Hycon hydraulic tool and power pack range.
£1,428.00 inc VAT
Enquiry: Hycon HH15 Hydraulic Breaker
Hycon Handheld Breaker Specifications:
| HH10RV | HH15 | HH20 | HH20RV | HH23 | HH25 | HH27 | HH35 | |
| Oil Flow (l.p.m): | 20 | 20 | 20 | 20 | 20/30 | 20/30 | 30 | 30/40 |
| Working Pressure (bar): | 100 | 100 | 110 | 110 | 120 | 120 | 130 | 130 |
| Max. Pressure (bar): | 160 | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Blow Frequency (1/min): | 2100 | 1830 | 1560 | 1560 | 1380 | 1380 | 1260 | 1100/1440 |
| Blow Energy (J): | 22 | 40 | 60 | 60 | 85/95 | 85/95 | 105 | 130 |
| Noise Level (dB A): | 105 | 105 | 106 | 106 | 108 | 108 | 110 | 111 |
| Vibration Level (m/s²): | 9.6 | 6.6 | 6.8 | 4.8 | 8 | 9.4 | 10.7 | 10.7 |
| Weight (kg): | 9.9 | 19.2 | 22 | 23.9 | 23.4/23.5 | 25.3/25.8 | 27.4 | 29.4 |
The Hycon Handheld Hydraulic Breaker is a range of compact high-performance breakers which are capable of handling the toughest of jobs, despite their low weight. Their sturdy and compact design hits harder than any other breaker on the market with the same weight. Designed for their use with tough materials like strong concrete, asphalt and frozen ground, while being capable of much more. All Hycon Handheld Breakers ensure the comfort for the operator due to the standardized Hycon PROLINE vibration-reduced handles. The reliability and supreme build quality of the Hycon Handheld series means longer service life, under extreme working conditions.
- Safety Trigger
- Ergonomically designed rubber handles
- Anti-Vibration handles comes standard for operator comfort
- Long service life due to excellent build quality and component sealing
- Accumulator can be serviced from the outside
