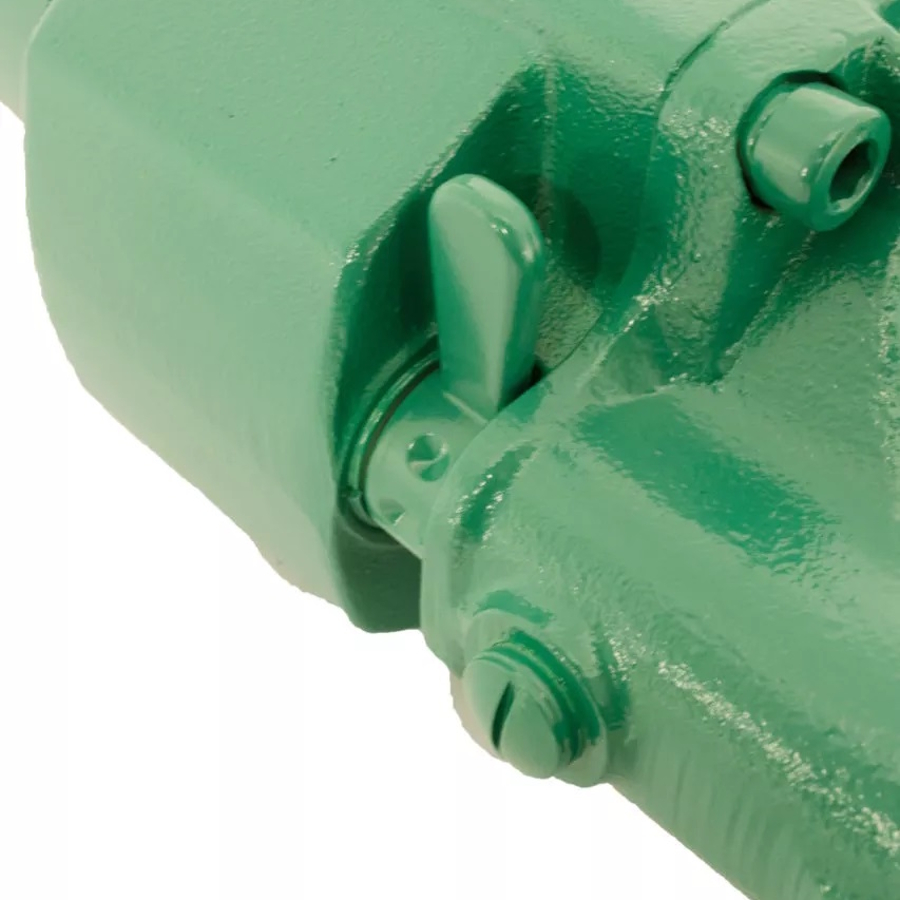

Spitznas 61410 – 61411 – 61412 Atex Impact Wrench 1″ Sq Dr (Pneumatic)
The Spitznas 614100010, 614110010 and 614120010 Atex pneumatic impact wrenches with 1″ square drive are a robust and reliable units.
The 6 1410 0010 and the 6 1411 0010 models of this Spitznas Atex pneumatic impact wrench are designed to be used on bolts and nuts upto M36 in size and it has a maximum torque of 2200 Nm. The 6 1412 0010 model is designed to be used on bolts and nuts upto M33 in size and it has a maximum torque of 1800 Nm.
The Spitznas 614100010 Model is suitable for Atex group II, category 2 which is suitable for zones 1 and 2. Areas in which explosive atmospheres caused by gases, vapours, mists or air/dust mixtures are likely to occur occasionally. Including production facilities in the food industry, chemical plants, oil & gas, and the pharmaceutical industry.
The Spitznas 614110010 and the 614120010 Models are suitable for Atex group I, category M2 which is suitable for use in underground mines and surface mines or dust environments.
Enquiry: Spitznas 61410 – 61411 – 61412 Atex Impact Wrench 1″ Sq Dr (Pneumatic)
| Part No | ATEX Specification | Square drive | Bolts upto | Air consumption | Max. torque | Noise level LpA | Vibration level | Weight |
|---|---|---|---|---|---|---|---|---|
| mm | m³/min | Nm | dB(A) | m/s² | kg | |||
| 6 1410 0010 | II2GExhIIBT6GB | 1″ | M36 | 1.60 | 2200 | 92.0 | 6.2 | 11.0 |
| 6 1411 0011 | IM2ExhIMbT5 | 1″ | M36 | 1.60 | 2200 | 92.0 | 6.2 | 13.5 |
| 6 1412 0010 | IM2ExhIMbT5 | 1″ | M33 | 1.10 | 1800 | 92.0 | 3.2 | 9.0 |
