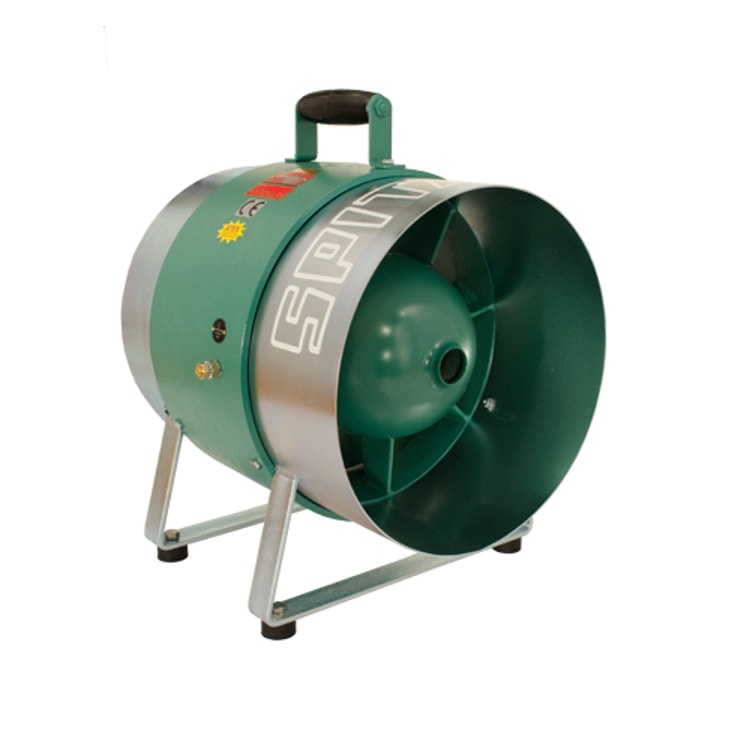

Spitznas Pneumatic Mobile Axial Fan 300m Diameter
Spitznas pneumatic mobile axial fan with 300 mm nominal diameter for various ventilation work.
The Spitznas pneumatic mobile axial fans are highly efficient, explosion-proof pneumatic powered units. These axial fans and air movers are ideal for ventilating, exhausting and cooling in applications such as ship holds, underground mining, shipyards, refineries, petrochemical plants, oil platforms, power plants, tunneling, sewers, construction and more.

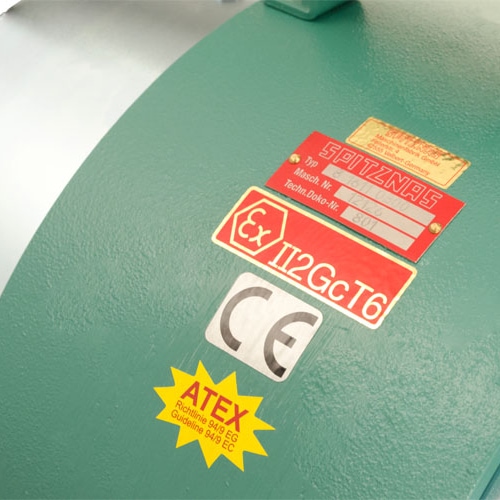

Atex approved and non Atex approved models available.
Enquiry: Spitznas Pneumatic Mobile Axial Fan 300m Diameter
| Part No | Atex Spec | Length | Max Pressure | Air Consumption | Volume Flow | Noise Level | Weight |
| mm | bar | m³/min | m³/s | dB(A) | kg | ||
| 8 1601 0300 | 350 | 5 | 0.58 | 0.78 | 87 | 13 | |
| 8 1602 0300 | 350 | 5 | 1.16 | 1 | 85 | 13 | |
| 8 1603 0300 | 370 | 5 | 0.58 | 0.78 | 85 | 14 | |
| 8 1611 0300 | II2GExhIIBT6Gb | 350 | 5 | 0.45 | 0.57 | 85.7 | 13 |
| 8 1613 0300 | II2GExhIIBT6Gb | 380 | 5 | 0.45 | 0.57 | 85.7 | 14.5 |
Features
